Special Design Vacuum Cup Gripper , Good Sealing Performance Sponge Vacuum Pad

Name: Special Design Vacuum Cup Gripper Good Sealing Performance Sponge Vacuum Pad
Brand: AMILA
Price: 1 USD

Brand Name : AMILA

Model Number : Composite Suction Cups MD-SPONGE

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Adsorption size : 75×75mm and 80×60mm

Material : Sponge

Highlight 1 : Good wear-resistance

Highlight 2 : Size can be customized

Keyword : Special Size Grippers

Contact Now

Special Grippers Composite Type MD-SPONGE Customized For Specific Size

1. Introduction and Benefits:

Applied to label adsorption and pasting;
Size can be customized;

2. Benefits

Space-saving variant for cramped installation spaces;
Very good sealing, damping on structured surfaces;
Safe gripping, even with porous materials;
Low operating costs;
No contamination of process area;

3. Structure:

Special Design Vacuum Cup Gripper , Good Sealing Performance Sponge Vacuum Pad

(1) is Silencer;
(2) Axial mounting (A) or lateral mounting(S);
(3) is compressed air intake;

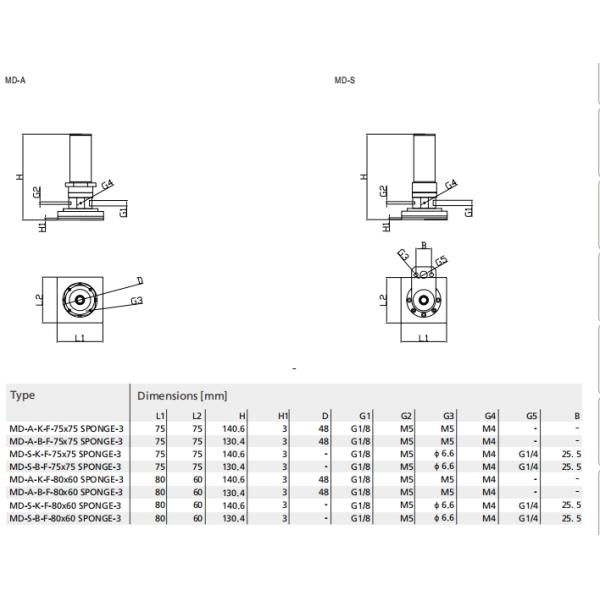

4. Deaign data:

Special Design Vacuum Cup Gripper , Good Sealing Performance Sponge Vacuum Pad

***Note: A represents the axial installation of the upper flange; S represents the lateral installation of the upper flange; K represents the adjustable vacuum generator; B represents the non-adjustable vacuum generator; F represents the lower flange;

5. Technology data:

Type	Dimensions[mm]
	Suction capacity	Air consumption	Operating pressure	Operating temperature
	[l/min]	[l/min]	[bar]	[℃]
MD-A-K-F	0…750	0…250	5	5…75
MD-A-K-M	0…750	0…250	5	5…75
MD-S-K-F	0…750	0…250	5	5…75
MD-S-K-M	0…750	0…250	5	5…75

Type	Dimensions[mm]
	Suction capacity	Air consumption	Operating pressure	Operating temperature
	[l/min]	[l/min]	[bar]	[℃]
MD-A-B-F	270…650	60…200	1.0…5.0	5…75
MD-A-B-M	270…650	60…200	1.0…5.0	5…75
MD-S-B-F	270…650	60…200	1.0…5.0	5…75
MD-S-B-M	270…650	60…200	1.0…5.0	5…75

Composite Suction Cups MD-SPONGE.pdf
